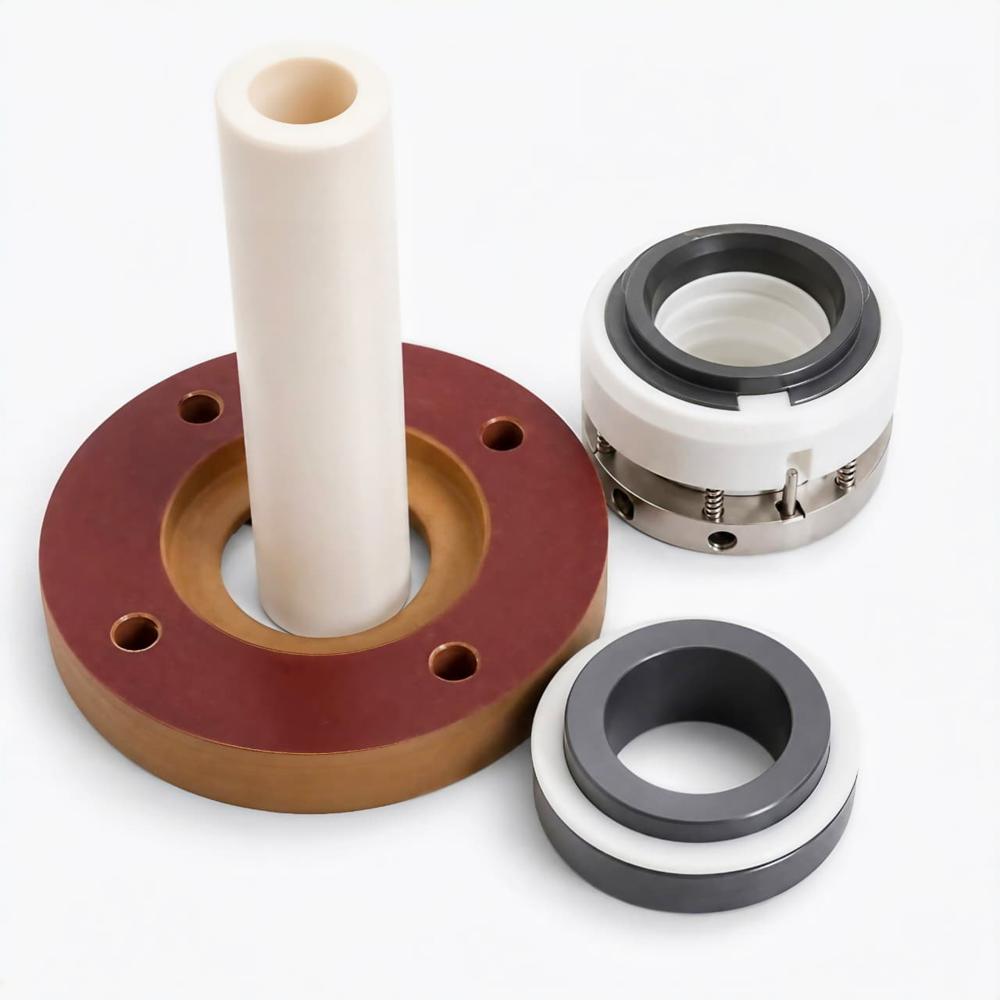

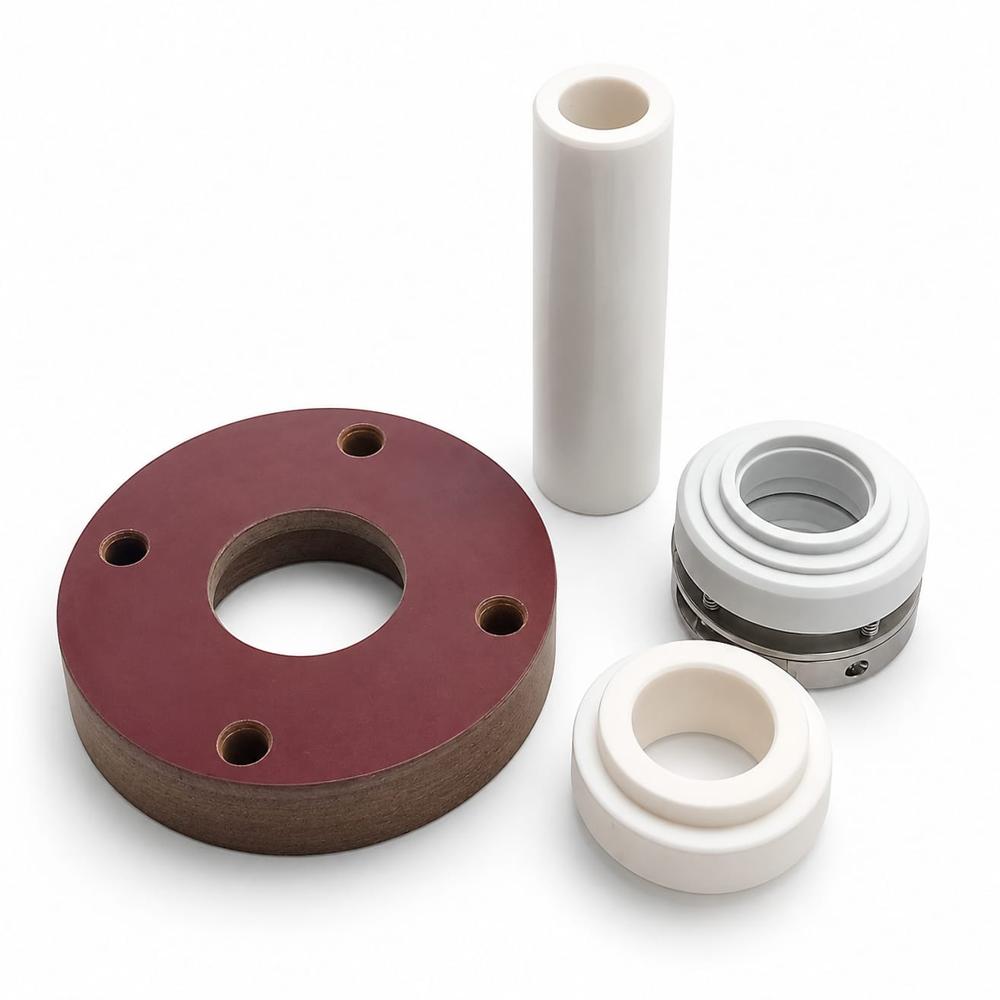

PTFE / Teflon Bellow Mechanical Seal

PTFE Bellow Mechanical Seals are specially designed for handling highly corrosive chemicals, aggressive acids, solvents, and hazardous process fluids. The PTFE bellows eliminate the need for dynamic secondary elastomers, making these seals an excellent choice for applications where conventional elastomers may fail due to chemical attack.

These seals are widely used in chemical processing plants, pharmaceutical industries, fertilizer plants, specialty chemical manufacturing, water treatment facilities, and other industries where corrosion resistance and leak-free operation are critical.

The compact design, excellent chemical compatibility, and low maintenance requirements make PTFE Bellow Mechanical Seals a reliable solution for demanding industrial applications.

Key Features

• Excellent resistance to corrosive chemicals and acids
• PTFE bellows design eliminates dynamic O-rings
• Suitable for aggressive and hazardous media
• Low maintenance requirements
• Reliable sealing performance
• Compact and lightweight construction
• Suitable for a wide range of pump applications
• Reduces shaft wear and equipment downtime
• Easy installation and replacement
• Designed for continuous industrial operation

Applications

• Chemical Processing Pumps
• Acid Transfer Pumps
• Alkali Handling Systems
• Pharmaceutical Equipment
• Specialty Chemical Plants
• Fertilizer Industry
• Water & Wastewater Treatment Plants
• Dye & Pigment Industry
• Petrochemical Industry
• Effluent Treatment Plants (ETP)

Benefits

• Superior chemical resistance
• Reduced leakage risk
• Longer service life in corrosive environments
• Lower maintenance costs
• Improved equipment reliability
• Increased plant safety
• Suitable for challenging process conditions

Typical Materials of Construction

Seal Faces

• Carbon Graphite
• Silicon Carbide (SiC)
• Tungsten Carbide (TC)
• Ceramic

Bellows Material

• Virgin PTFE
• Filled PTFE (Application Specific)

Metal Components

• SS 316
• SS 316L
• Hastelloy
• Other special alloys on request



Frequently Asked Questions (FAQs)

What is a PTFE Bellow Mechanical Seal?

A PTFE Bellow Mechanical Seal is a mechanical seal that uses a PTFE bellows instead of conventional elastomeric secondary seals. It is primarily used for handling corrosive and chemically aggressive fluids.

What are the advantages of a PTFE Bellow Mechanical Seal?

Key advantages include:

• Excellent chemical resistance
• No dynamic O-rings
• Reduced risk of elastomer failure
• Low maintenance requirements
• Reliable performance in corrosive environments



Where are PTFE Bellow Mechanical Seals commonly used?

They are commonly used in:

• Chemical industries
• Pharmaceutical plants
• Fertilizer plants
• Acid handling systems
• Water treatment plants
• Specialty chemical manufacturing facilities



Can PTFE Bellow Mechanical Seals handle strong acids?

Yes. PTFE offers excellent resistance to many strong acids, making these seals suitable for highly corrosive applications.

Are PTFE Bellow Mechanical Seals suitable for solvents?

Yes. PTFE is compatible with a wide range of industrial solvents and aggressive chemicals.

What types of chemicals can be handled with PTFE Bellow Mechanical Seals?

They are suitable for:

• Sulfuric Acid
• Hydrochloric Acid
• Nitric Acid
• Caustic Solutions
• Solvents
• Corrosive Chemical Mixtures

Material compatibility should always be verified before final selection.

Why is PTFE used in mechanical seals?

PTFE provides outstanding chemical resistance, low friction properties, and excellent durability in aggressive process environments.

Can PTFE Bellow Mechanical Seals be used in centrifugal pumps?

Yes. They are widely used in centrifugal pumps handling corrosive and hazardous fluids.

What seal face materials are available?

Common seal face combinations include:

• Carbon vs Ceramic
• GFT vs Ceramic
• Carbon vs Silicon Carbide
• Silicon Carbide vs Silicon Carbide



Are PTFE Bellow Mechanical Seals suitable for pharmaceutical applications?

Yes. They are commonly used in pharmaceutical and specialty chemical industries where chemical resistance and product containment are important.

How do I select the correct PTFE Bellow Mechanical Seal?

Selection depends on:

• Chemical composition of the fluid
• Temperature
• Pressure
• Shaft size
• Rotational speed
• Equipment type
• Material compatibility requirements



What are the common causes of PTFE Bellow Mechanical Seal failure?

Common causes include:

• Dry running
• Improper installation
• Excessive vibration
• Abrasive particles
• Incorrect material selection
• Operating conditions beyond design limits



Can PTFE Bellow Mechanical Seals be customized?

Yes. They can be customized based on shaft size, operating conditions, material requirements, and application needs.

How long does a PTFE Bellow Mechanical Seal last?

Seal life depends on operating conditions, media characteristics, equipment condition, and maintenance practices. Proper selection and installation significantly increase service life.

Are PTFE Bellow Mechanical Seals maintenance-free?

While no mechanical seal is completely maintenance-free, PTFE Bellow Mechanical Seals generally require less maintenance than conventional sealing solutions in corrosive applications.

What information is required for seal selection?

For accurate seal selection, the following information is typically required:

• Fluid details
• Temperature
• Pressure
• Shaft size
• RPM
• Equipment type
• Existing seal details (if replacement)



Need Help Selecting the Right PTFE Bellow Mechanical Seal?

Our technical team can help you select the most suitable sealing solution for your application.
