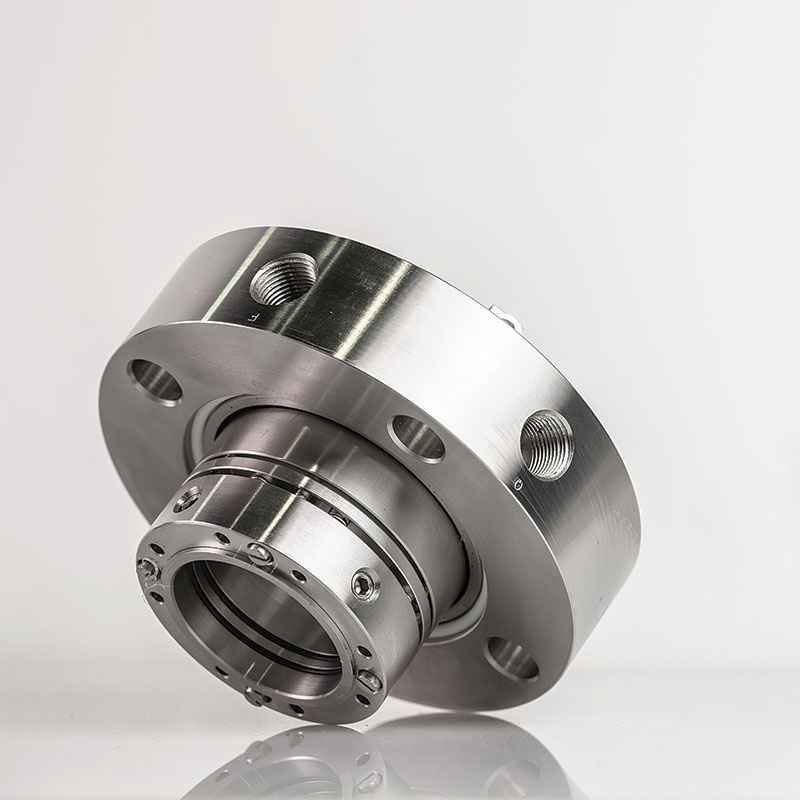

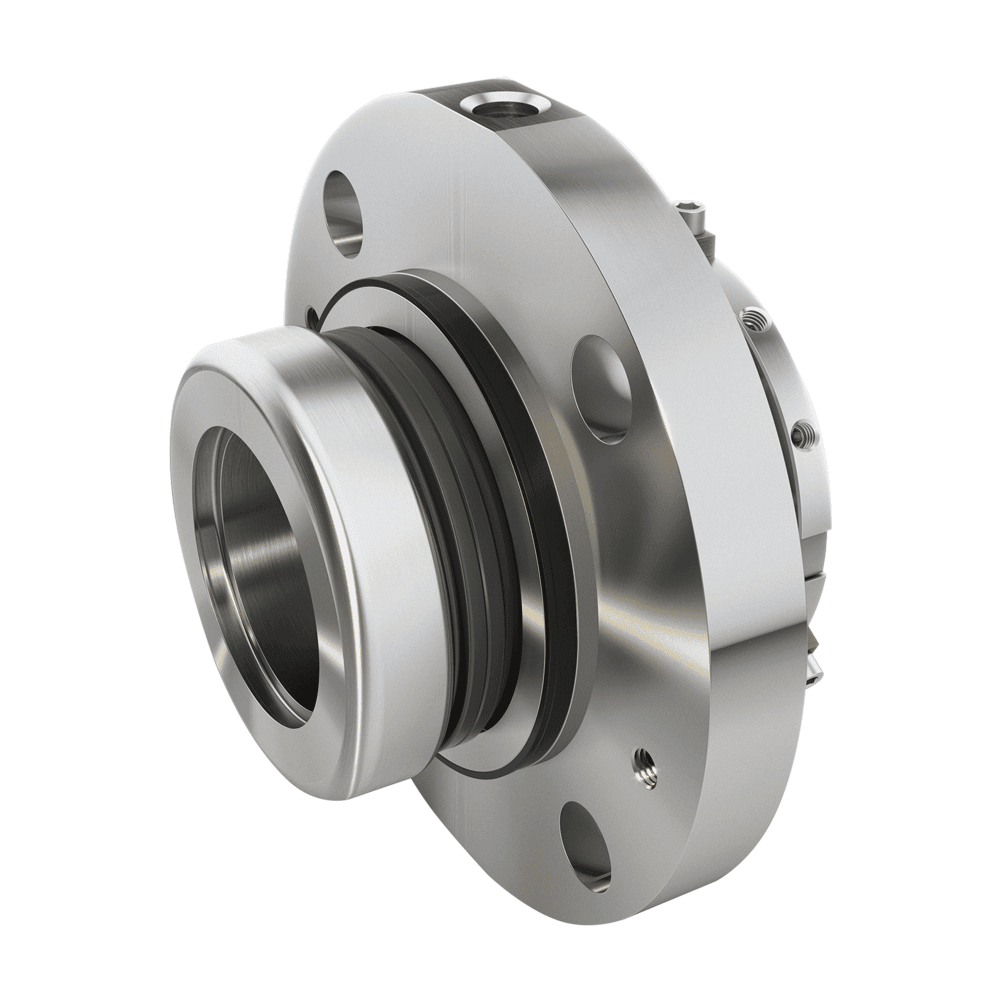

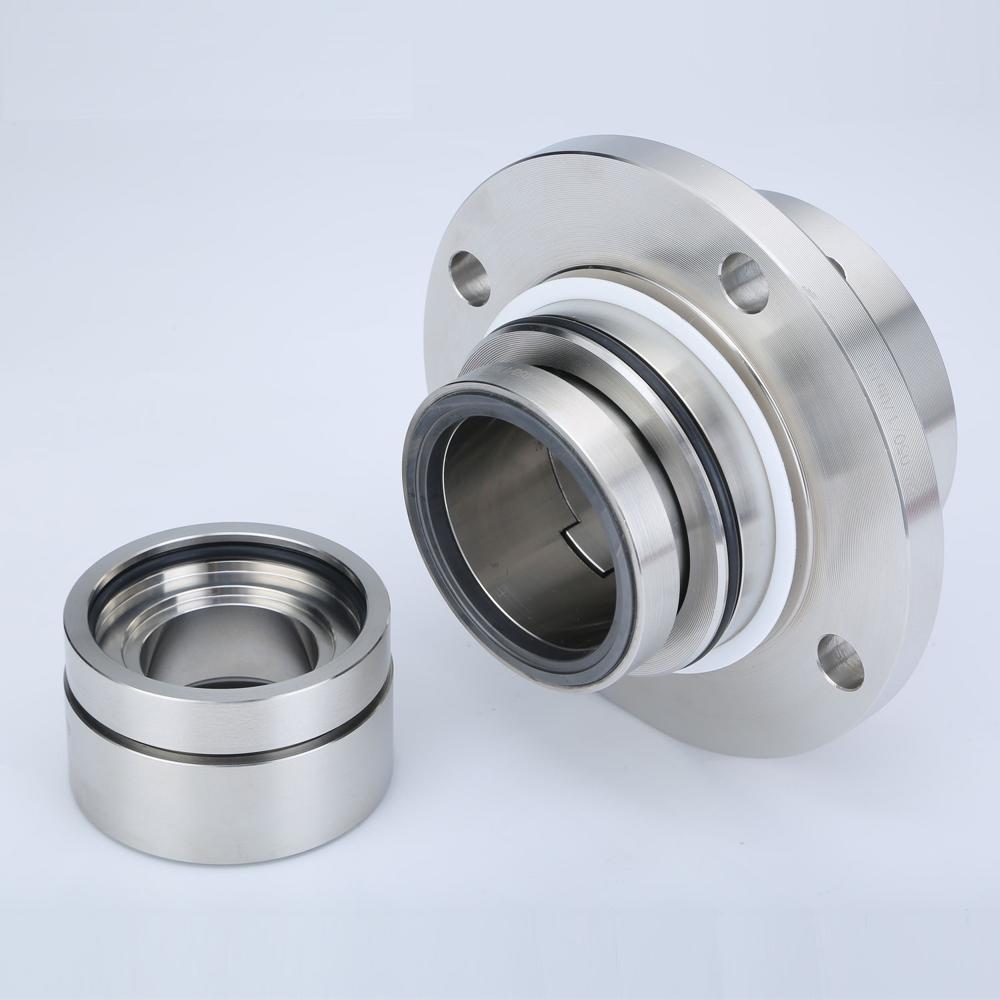

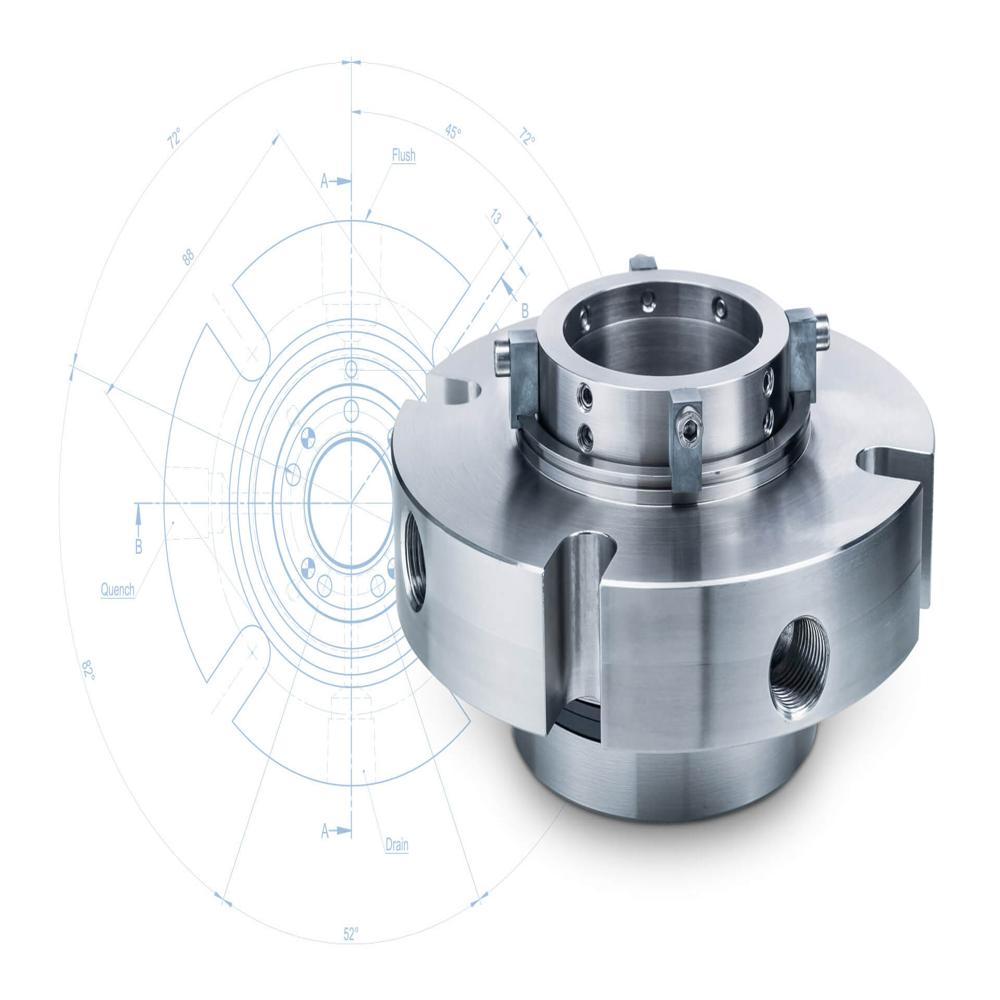

Single Cartridge Mechanical Seal

The Single Cartridge Mechanical Seal is a pre-assembled sealing solution designed to provide reliable leakage control in pumps, mixers, reactors, agitators, and other rotating equipment. Its cartridge design simplifies installation by eliminating the need for complex setting dimensions, reducing installation errors and downtime.

Manufactured from high-quality metals, seal faces, and elastomers, Single Cartridge Mechanical Seals are widely used across industries such as pharmaceuticals, chemicals, petrochemicals, food processing, fertilizers, power plants, paper mills, water treatment, and general process industries.

These seals are engineered to deliver consistent performance under demanding operating conditions, helping improve equipment reliability, reduce maintenance costs, and extend service life.

Key Features

• Pre-assembled cartridge design for easy installation
• Eliminates seal setting errors
• Reduces equipment downtime and maintenance time
• Suitable for high-pressure and demanding applications
• Protects shafts and sleeves from wear
• Reliable performance under varying operating conditions
• Available in multiple sizes and material combinations
• Suitable for pumps, reactors, mixers, and agitators

Applications

• Centrifugal Pumps
• Chemical Process Pumps
• Agitators & Mixers
• Reactors
• Pharmaceutical Equipment
• Petrochemical Plants
• Food & Beverage Processing
• Fertilizer Plants
• Water & Wastewater Treatment Systems
• Pulp & Paper Industry

Benefits

• Enhanced equipment reliability
• Reduced product leakage
• Lower maintenance costs
• Faster installation and replacement
• Increased operational efficiency
• Longer seal service life

Frequently Asked Questions (FAQs)

What is a Single Cartridge Mechanical Seal?

A Single Cartridge Mechanical Seal is a factory-assembled sealing unit that contains all critical sealing components in a single package. It simplifies installation and helps prevent leakage in rotating equipment.

Where are Single Cartridge Mechanical Seals used?

They are commonly used in pumps, agitators, mixers, reactors, compressors, and other rotating equipment across various industries.

What are the advantages of a cartridge seal over a conventional mechanical seal?

Cartridge seals are easier to install, reduce installation errors, require less maintenance, provide better reliability, and help reduce equipment downtime.

Can a Single Cartridge Mechanical Seal handle high-pressure applications?

Yes. Depending on the design and material selection, cartridge mechanical seals can be engineered for high-pressure and demanding industrial applications.

Which industries commonly use Single Cartridge Mechanical Seals?

Industries such as pharmaceuticals, chemicals, petrochemicals, food processing, fertilizers, power generation, paper mills, and water treatment plants commonly use these seals.

What materials are used in Single Cartridge Mechanical Seals?

Typical materials include:

Seal Faces

• Carbon Graphite
• Silicon Carbide (SiC)
• Tungsten Carbide (TC)
• Ceramic

Elastomers

• Viton (FKM)
• EPDM
• Nitrile (NBR)
• PTFE
• AFLAS
• FFKM

Metal Components

• SS 304
• SS 316
• SS 316L
• Hastelloy
• Duplex Stainless Steel



How do I select the right Single Cartridge Mechanical Seal?

Selection depends on:

• Fluid being handled
• Operating pressure
• Temperature
• Shaft size
• Rotational speed
• Equipment type
• Chemical compatibility requirements



Are Single Cartridge Mechanical Seals suitable for corrosive chemicals?

Yes. By selecting appropriate seal face materials, elastomers, and metal components, they can be used in highly corrosive applications.

Can the seal be customized for specific applications?

Yes. Cartridge mechanical seals can be customized based on operating conditions, equipment design, and process requirements.

How long does a Single Cartridge Mechanical Seal last?

Seal life depends on operating conditions, fluid characteristics, installation quality, and maintenance practices. Properly selected and installed seals can provide long service life.

What are the common causes of mechanical seal failure?

Common causes include:

• Dry running
• Improper installation
• Excessive vibration
• Misalignment
• Chemical incompatibility
• Abrasive particles in the fluid
• Operating beyond design limits



Does a cartridge seal require setting dimensions during installation?

No. One of the major advantages of a cartridge seal is that setting dimensions are pre-set at the factory, making installation easier and more accurate.

Can Single Cartridge Mechanical Seals reduce maintenance costs?

Yes. Their reliable design minimizes leakage, reduces unplanned shutdowns, and lowers maintenance expenses.

How can I get technical support for seal selection?

Our engineering team can assist with seal selection based on your application details, operating parameters, and equipment specifications.

Need help selecting the right Single Cartridge Mechanical Seal?

Contact our technical team at info@inventomaticseals.com
